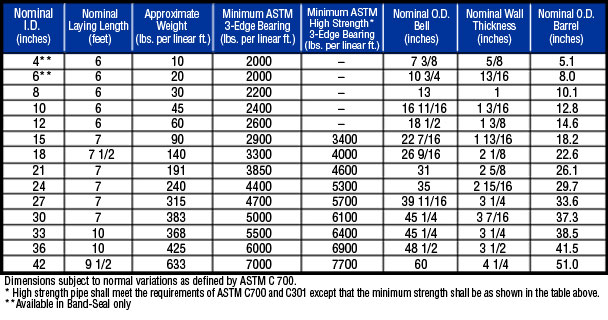

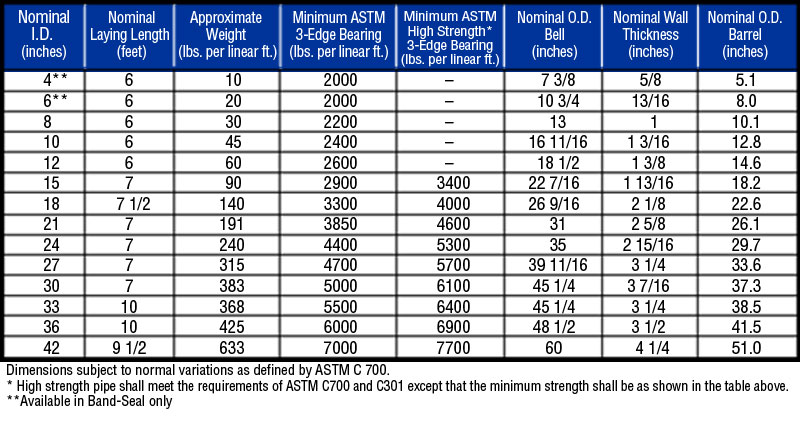

Sizes & Specifications

Dimensions subject to normal variations as defined by ASTM C 700.
* High strength pipe shall meet the requirements of ASTM C700 and C301 except that the minimum strength shall be shown in the table above.
** Available in Band-Seal only.
Nominal
I.D.
(inches) 		Nominal
Laying Length
(feet) 		Approximate
Weight
(lbs/linear ft) 		Minimum ASTM
3-Edge Bearing
(lbs/linear ft) 		Minimum ASTM
High Strength*
3-Edge Bearing
(lbs/linear ft) 		Nominal
O.D. Bell
(inches)		 Nominal Wall
Thickness
(inches)		 Nominal O.D.
Barrel
(inches)
4** 6 10 2000 - 7 3/8 5/8 5.1
6** 6 20 2000 - 10 3/4 13/16 8.0
8 6 30 2200 - 13.0/13.1 1 10.0/10.0
10 6 45 2400 - 16.3/16.3 1 3/16 12.9/12.9
12 6 60 2600 - 18.8/18.8 1 3/8 14.8/14.9
BPC 15 7 90 2900 3400 22.6/22.6 1 13/16 18.7/18.7
TEX 15 7 90 2900 3400 22.4/22.8 1 13/16 18.5/18.6
18 7 1/2 140 3300 4000 26.4/26.5 2 1/8 22.4/22.5
21 7 191 3850 4600 30.6/30.8 2 5/8 26.2/26.3
24 7 240 4400 5300 35.0/35.4 2 15/16 29.8/29.8
27 7 315 4700 5700 39.7/39.9 3 1/4 33.4/33.7
30 7 383 5000 6100 45.2/45.5 3 7/16 37.2/37.4
33 10 368 5500 6400 46.2/46.4 3 1/4 39.3/39.7
36 10 425 6000 6900 51.0/51.1 3 1/2 43.7/43.8
42 9 1/2 633 7000 7700 60 4 1/4 51.0

How to Specify JCP
All pipe shall be extra strength, vitrified clay, meeting the requirements of ASTM Specification C 700, as manufactured by Building Products Company LLC. Factory applied polyurethane joints conform to the material and performance standards of ASTM C 425 "Standard Specification for Compression Joints for Vitrified Clay Pipe and Fittings". Installation shall be per ASTM C 12 "Installing Vitrified Clay Pipe Sewers".

JCP Vitrified Clay Pipe and Band-Seal® Couplings
meet or exceed the following standards:
• ASTM C 700 and ASTM C 425
• International Association of Plumbing and Mechanical Officials

SPECIFICATIONS
Vitrified Clay Pipe ASTM C 700
Compression Joint ASTM C 425
Clay Pipe Testing Method ASTM C 301
Installation Method ASTM C 12
